LPS blocks and the Building Safety Regulator: what structural evidence you actually need

Of all the construction types caught by the Building Safety Act, large panel system blocks have attracted the most specific attention from the Building Safety Regulator. If you are a building safety manager at a housing association or council with LPS stock, this is the part of your portfolio where the regulator’s questions will be sharpest and your records are likely to be weakest.

This article sets out why LPS is treated as a category of its own, what a safety case needs to say about these structures, and what investigation is realistically required to say it.

Why LPS is different

Large panel system construction — precast concrete panels assembled on site, rather than a frame with infill — was used widely for high-rise housing in Britain from the late 1950s to the early 1970s. The buildings went up fast, which was the point.

The concern is structural robustness: whether the panels are adequately tied together, and whether the loss of one load-bearing element would bring down a disproportionate area of the building. The Ronan Point collapse in 1968 made that a national question and drove the disproportionate collapse provisions that still sit in the regulations. Many blocks were strengthened in the decades afterwards. The problem for a safety case is that the record of what was done, block by block, is frequently incomplete — and “we believe strengthening works were carried out in the 1980s” is not a control measure.

Construction methods also varied considerably across that period and between systems. An engineer’s assumptions about one block do not transfer safely to another, even on the same estate.

What the regulator is looking for

LPS blocks have been identified and prioritised by the regulator rather than left to work through in registration order, and gas supply within them has been a recurring concern — a gas explosion being precisely the accidental loading that disproportionate collapse provisions exist to resist.

What a safety case has to demonstrate for an LPS block is, in substance, an argument about robustness: what the structure is, how the panels and floors are connected and supported, what condition those elements and connections are in, whether any strengthening was carried out and to what standard, and what that means for the risk of disproportionate collapse under a credible accidental load. Guidance on assessing LPS blocks for accidental loading exists — BRE’s work in this area is the usual reference point — but every route through it depends on knowing what the building actually is.

Visual survey is not enough

This is the point most often underestimated when budgets are set. The critical features of an LPS block — panel reinforcement, the ties between panels, bearing details at floor connections, cover and condition of embedded steel — are not visible. A visual inspection of a stairwell and a couple of voids tells you the finishes are intact. It tells you nothing about whether the ties are there.

Establishing the structure means investigating it. That does not automatically mean opening up: a great deal can be established non-destructively, and in occupied residential blocks that distinction is what makes a programme deliverable at all.

What investigation looks like in practice

A proportionate LPS investigation programme, scoped by the structural engineer leading the appraisal, typically draws on:

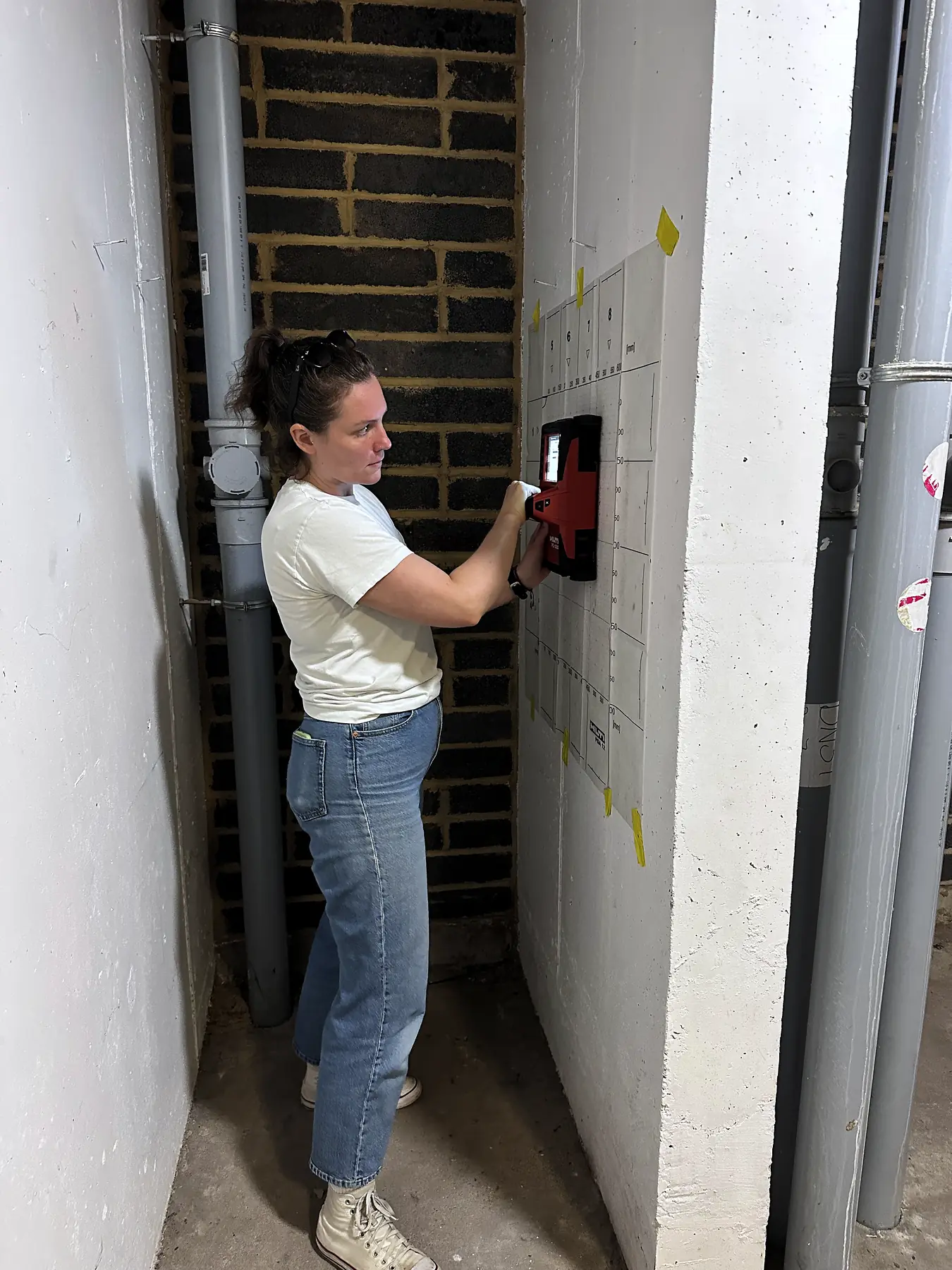

• Reinforcement and tie detection. GPR and ferro scanning locate reinforcement and embedded steel within panels and at joints, confirming — or correcting — the assumed detail. This is the core of an LPS investigation, because the tie arrangement is the whole question.
• Panel and slab geometry. Thickness and construction established from a single accessible face, which in a flat with plasterboard linings and no access next door is often the only option.
• Cover and condition of embedded steel. Cover depth measurement and condition testing — carbonation, chloride, half-cell potential — to establish whether corrosion is credible at the locations that matter.
• In-situ concrete strength. Pull-out testing to BS EN 12504-3 and complementary methods, giving the engineer a defensible strength value rather than a design assumption from a lost specification.
• Verification of previous strengthening. Where records suggest remedial ties or straps were installed, scanning can confirm whether they are actually present and where — which is frequently the single most valuable finding in the whole exercise.

The results feed two things at once: the engineer’s structural appraisal, and the evidence base of the safety case report itself.

Working in occupied homes

LPS blocks are people’s homes, and a programme that ignores that will stall. Non-destructive methods matter here for practical reasons as much as technical ones: no dust, no noise beyond a survey trolley, no making good, and access measured in minutes per location rather than days. Sampling can be structured around the flats you can get into rather than requiring a specific unit, and where a resident refuses access — which happens — a well-designed programme has alternates built in rather than a hole in the dataset.

It is also worth remembering that resident engagement is itself part of the safety case. A survey programme explained properly to residents is evidence of the engagement duty being taken seriously; one that arrives unannounced is a complaint.

Where to start

If you hold LPS blocks, the sequence is: establish what documentation genuinely exists for each block, individually rather than by estate; get a structural engineer with LPS experience to review it and state what they cannot conclude from it; then commission investigation targeted at exactly those gaps. That order matters — investigation commissioned before the engineer has framed the questions tends to produce data nobody can use.

The regulator’s interest in LPS is not going to soften. The blocks that come through assessment well will be the ones whose landlords stopped relying on what was probably done in 1985 and went and measured what is actually there.

If you are earlier in the process, our plain-English guide to building safety cases covers the regime as a whole, and we have written on what changed at the regulator in 2026.
